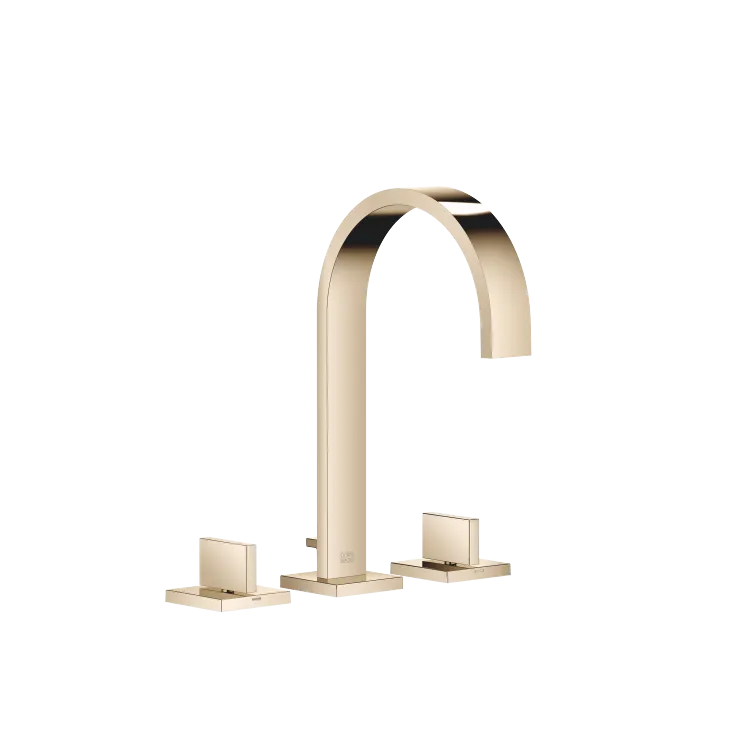

MEM Three-hole basin mixer with pop-up waste - Champagne (22kt Gold)
| Product Number | 20 713 782-47 |
| EAN Number | 4099477090924 |
Champagne (22kt Gold)
Product Description
The flowing yet puristic design of MEM from Dornbracht is reminiscent of the most natural and original form of water presentation: spring. The fitting takes a deliberate step back, and by doing so, is fully taken up by the individual ambience of the architecture. The series stands for clarity, reduction, and balance, and thanks to the extensive enhancement, it now offers an even greater variety of design options.
| Product Number | 20 713 782-47 |
| EAN Number | 4099477090924 |
| Application area | Basin |
| Construction type | Floor mounting |
| Flow rate Max. | 8.3 l/min |
| Brand | Dornbracht |
Product Detail
- 165mm projection
- Fixed spout
- Rectangular, air-enriched flow
- Height of mixer 277 mm
- Height up to aerator 170 mm
- Hole diameter spout 35 mm
- Hole diameter valve 32 mm
- Rosette 60 x 60 mm
- 2x screw-in M 10 x 1 pressure hose, leak-tested
- Max. flow 8.3 l/min
- Lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- WRAS
- Only suitable for basins with an overflow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
Downloads
Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.
