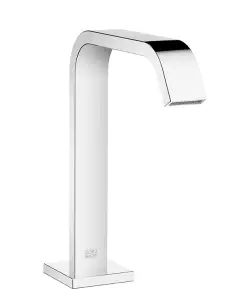

IMO Chrome : eSET Touchfree Basin mixer without pop-up waste with temperature setting

IMO eSET Touchfree Basin mixer without pop-up waste with temperature setting - Chrome - Set containing 2 articles

Product Description

Welcome to your bathroom. IMO unites two prevalent formal expressions, combining a round body with a rightangled lever and spout. This hybrid-shape design lends the series a universality, which appears modern, clear-cut and high-quality. IMO is the fitting for all those who want to design their bathroom themselves.

Product Number	Set containing 2 articles
Application area	Basin
Flow rate Max.	4.6 l/min
Brand	Dornbracht

Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

165mm projection
Fixed spout
Rectangular, air-enriched flow
Height of mixer 220 mm
Height up to aerator 176 mm
Hole diameter 35 mm
2x screw-in M 10 x 1 pressure hose, leak-tested
1/2" connection
Max. flow 4.6 l/min
Lead-free
Automatic hygiene flush

Suitable for thermal disinfection
Adjustable follow-up time
High-frequency sensors with self-calibration
Magnetic valve
Temperature setting via thermostat
100-240 V AC / 12 V DC, 50-60 Hz, 18 W power supply unit, incl. country-specific adapter set
For Touchfree control please order eSet Touchfree with temperature adjustment
Cannot be combined with basins in conducting materials (e.g. steel. river stone).
Use with top-mounted basins is excluded.
Cannot be combined with basins that have a closing drain.
ATTENTION: Separate terms and conditions for electronic articles are applicable.

Downloads

Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.
