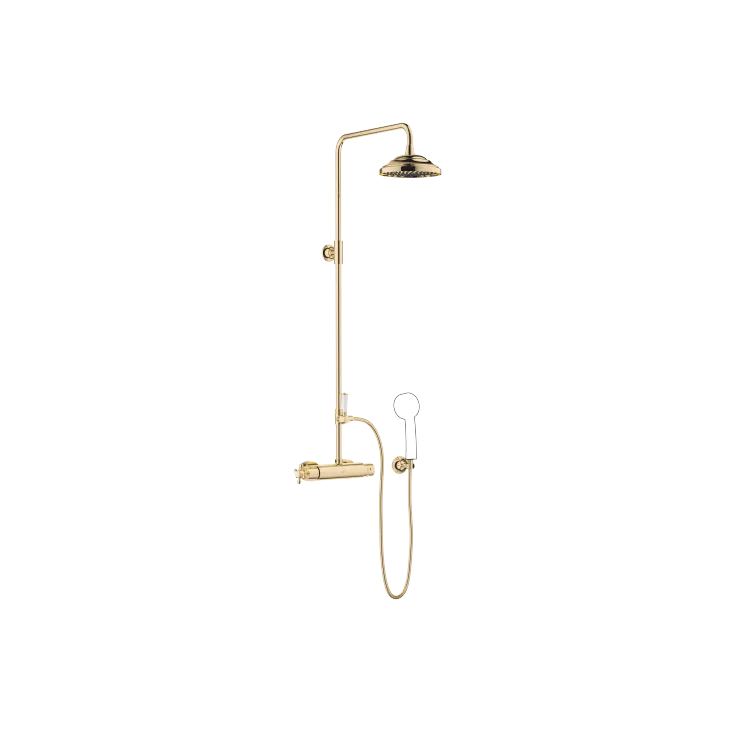

MADISON Showerpipe with shower thermostat - Durabrass (23kt Gold)
| Product Number | Set containing 2 articles |
Finishes
Durabrass (23kt Gold)
Product Description
Playing with history. MADISON takes up the turn of the century approach to the world of style. The fascination comes from its elegant form and the value of its materials. Cross handles with white porcelain inserts and a hexagonal spout with cut facets are reminiscent of the classical model.
| Product Number | Set containing 2 articles |
| Application area | Shower |
| Construction type | Surface wall mounting |
| Brand | Dornbracht |
Product Detail
- Shower with fixed riser projection 420mm
- Rain shower Ø 200 mm
- Rain shower with anti-scale system
- Max. rainshower flow 14 l/min
- Function from: 8 l/min
- Rotary diverter for fixed-riser shower/hand shower
- Height of fittings up to rain shower (bottom edge) 985mm
- Height of fittings up to top edge of elbow 1160mm
- Two-part push-on rosette Ø 65 mm
- Rosette for shower holder Ø 65mm
- Rosette for wall mounting Ø 60mm
- Gauge 150 mm - 13 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- 1/2" connection
- Pipe diameter 20 mm
- This article does not include a hand shower!
- Intrinsic protection against back flow.
