MADISON Showerpipe with shower thermostat - Durabrass (23kt Gold) - Set containing 3 articles


MADISON Showerpipe with shower thermostat - Durabrass (23kt Gold)

Product NumberSet containing 3 articles

Product Details

Application areaShower
Construction typeSurface wall mounting
Finish typeDurabrass (23kt Gold)
Product conceptMADISON
Product type BUFitting


  • Shower with fixed riser projection 420mm
  • Rain shower: PURE RAIN, max. flow rate 14 l/min (at 3 bar)
  • Function from: 8 l/min
  • Rain shower Ø 200 mm
  • Rain shower with anti-scale system

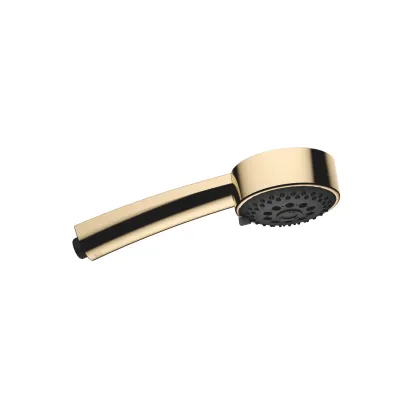

  • Hand shower: Three or five settings: COMPACT RAIN, COMPACT SOFT FLOW, COMPACT AQUAPRESSURE FLOW, max. flow rate 9 l/min (at 3 bar)
  • Spray head Ø 95mm
  • Rotary diverter for fixed-riser shower/hand shower
  • Height of fittings up to rain shower (bottom edge) 985mm
  • Height of fittings up to top edge of elbow 1160mm
  • Two-part push-on rosette Ø 65 mm
  • Rosette for shower holder Ø 65mm
  • Rosette for wall mounting Ø 60mm
  • Gauge 150 mm - 13 mm
  • Metal shower hose 1250mm with integrated anti-twist protection
  • 1/2" connection
  • Pipe diameter 20 mm
  • Intrinsic protection against back flow.

Set components
