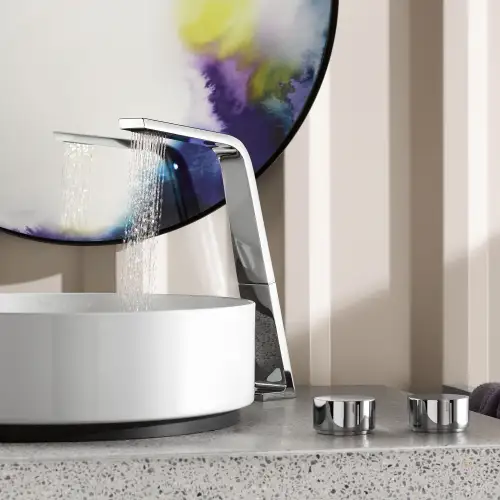

CL.1 Deck-mounted basin spout without pop-up waste - Brushed Platinum - 13 717 705-06

CL.1 Deck-mounted basin spout without pop-up waste - Brushed Platinum

Product Number13 717 705-06
EAN Number4029011702624

Finishes
Chrome
Brushed Platinum
Dark Chrome
Brushed Champagne (22kt Gold)
Champagne (22kt Gold)
Brushed Dark Platinum

Brushed Platinum


Product Description

CL.1 - Sharpen your senses. Dornbracht presents CL.1, a new fittings series for the bathroom. Its progressive design language marks the start of a new era of Dornbracht design – dynamic, animated and elegant. CL.1 also has two striking and innovative features: a new flow pattern that gently immerses the user’s hands in 40 soft, individual jets of water and surface textures that give the handles a special look and feel.

Product Number13717705-06
EAN Number4029011702624
Application areaBasin
Construction typeFloor mounting
Flow rate Max.4 l/min
Series correlationCL.1
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • 200mm projection
  • Fixed spout
  • Rectangular spray pattern with 40 individual jets
  • Height of mixer 343 mm
  • Height up to aerator 329 mm
  • Hole diameter 35 mm
  • Max. flow 4 l/min
  • 1/2" connection
  • 2x screw-in M 10 x 1 pressure hose, leak-tested
  • Lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • WRAS 1512011

Customisation Options

Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
