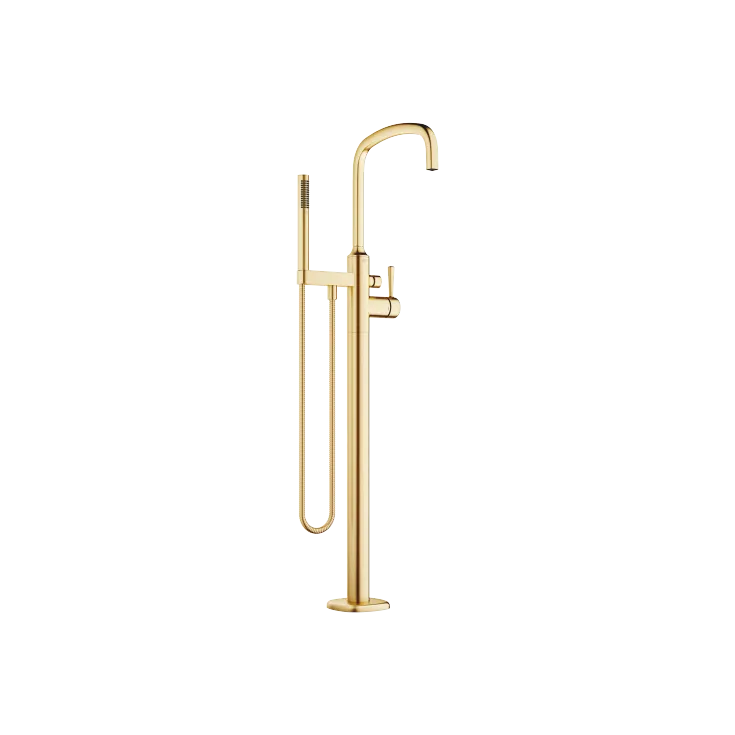

COYA Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Durabrass (23kt Gold)
| Product Number | 25 863 404-28 |
| EAN Number | 4099477499093 |
Brushed Durabrass (23kt Gold)
Product Description
| Product Number | 25 863 404-28 |
| EAN Number | 4099477499093 |
| Application area | Bath |
| Flow rate Max. | 25.2 l/min |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 24.6 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Bar-type hand shower with anti-scale system
- 280mm projection
- Pivotable spout 360°
- Automatic bath/shower diverter
- Total height 1016 - 1086 mm
- Wall bracket
- Stand pipe height 565 - 635 mm
- Height up to aerator 904 – 974 mm
- Slide-on rosettes Ø 135 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
Downloads
Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.
