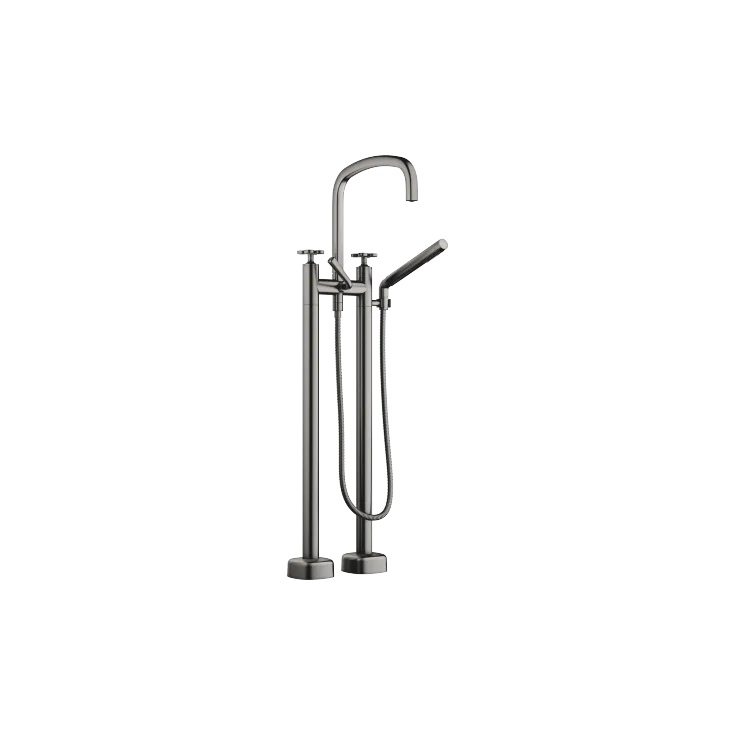

Two-hole bath mixer for free-standing assembly with hand shower set
| Product Number | 25 943 424-99 |
| EAN Number | 4099477510972 |
Brushed Dark Platinum
Product Description
| Product Number | 25 943 424-99 |
| EAN Number | 4099477510972 |
| Application area | Bath |
| Flow rate Max. | 25.2 l/min |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 24.6 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Hand shower with anti-scale system
- 280mm projection
- Pivotable spout 360°
- Rotary diverter for bath/shower
- Total height 946 mm
- Stand pipes height 661 mm
- Height up to aerator 834 mm
- Slide-on rosettes Ø 100 mm
- Gauge 150 mm
- Metal shower hose 1250mm with integrated anti-twist protection
- Pivotable shower holder on the right foot
- Intrinsic protection against back flow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
