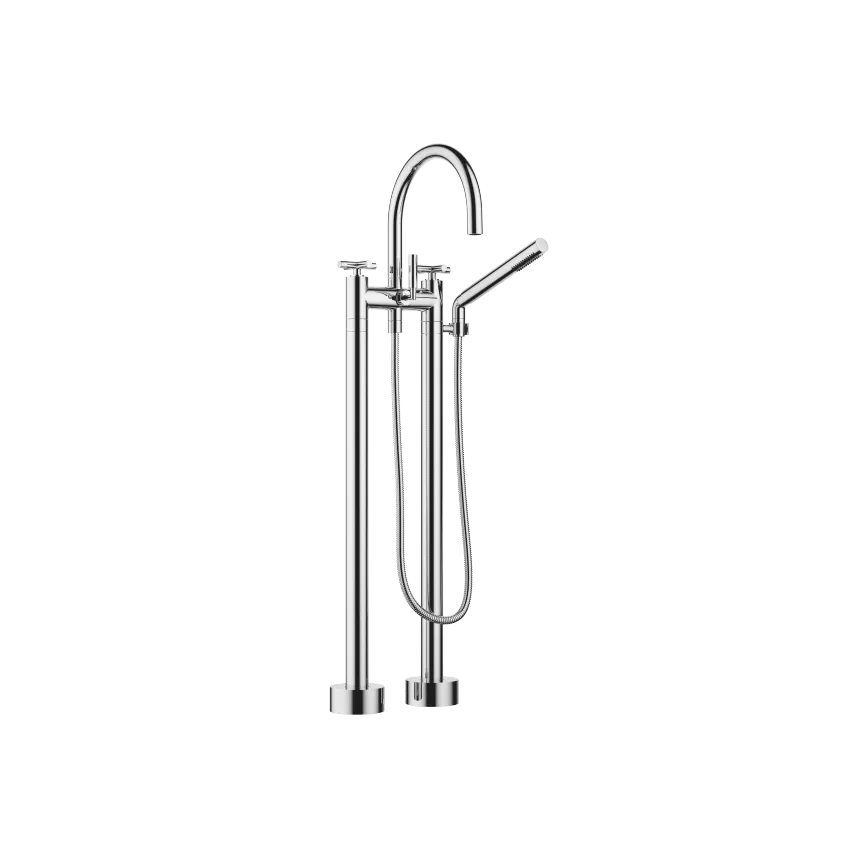

TARA Chrome : Two-hole bath mixer for free-standing assembly with hand shower set

TARA Two-hole bath mixer for free-standing assembly with hand shower set - Chrome - 25 943 892-00

Product Description

Product Number	25 943 892-00
EAN Number	4029011521904
Application area	Bath
Construction type	Free-standing assembly
Brand	Dornbracht

Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

220mm projection
Pivotable spout 180°
Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
Spout: circular, air-enriched flow
Hand shower with anti-scale system
Rotary diverter for bath/shower
Total height 920 mm
Stand pipes height 628 mm

Height up to aerator 765 mm
Slide-on rosettes Ø 90 mm
Gauge 150 mm
Metal shower hose 1250mm with integrated anti-twist protection
Pivotable shower holder on the right foot
Max. flow 22 l/min at 3 bar flow pressure
WRAS
Intrinsic protection against back flow.

Customisation Options

Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
