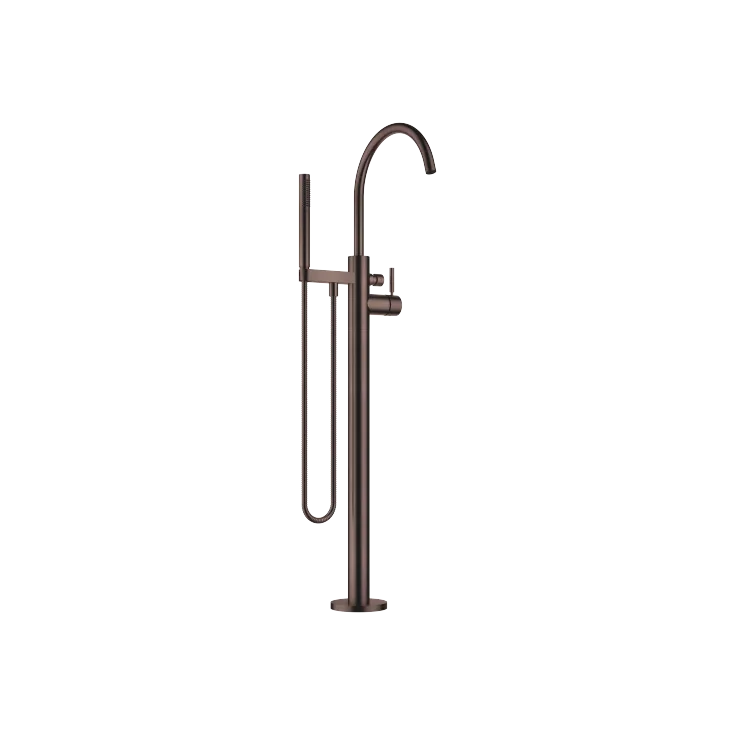

Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Dark Bronze (PVD)
Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Dark Bronze (PVD) - 25 863 661-43
Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Dark Bronze (PVD) - 25 863 661-43
Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Dark Bronze (PVD) - 25 863 661-43

Single-lever bath mixer with stand pipe for free-standing assembly with hand shower set - Brushed Dark Bronze (PVD)

Product Number25 863 661-43
EAN Number4099477463629
Finishes
Chrome
Chrome
Brushed Platinum
Brushed Platinum
Dark Chrome
Dark Chrome
Light Gold (PVD)
Light Gold (PVD)
Brushed Light Gold (PVD)
Brushed Light Gold (PVD)
Brushed Durabrass (23kt Gold)
Brushed Durabrass (23kt Gold)
Matte Black
Matte Black
Brushed Dark Brass (PVD)
Brushed Dark Brass (PVD)
Brushed Bronze (PVD)
Brushed Bronze (PVD)
Brushed Dark Bronze (PVD)
Brushed Dark Bronze (PVD)
Brushed Champagne (22kt Gold)
Brushed Champagne (22kt Gold)
Champagne (22kt Gold)
Champagne (22kt Gold)
brushed chrome
brushed chrome
Brushed Dark Platinum
Brushed Dark Platinum

Brushed Dark Bronze (PVD)



Product Description

Product Number25 863 661-43
EAN Number4099477463629
Application areaBath
Construction typeFree-standing assembly
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Spout: circular, air-enriched flow
  • Max. flow 19.5 l/min at 3 bar flow pressure
  • Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
  • Bar-type hand shower with anti-scale system
  • Pivotable spout 360°
  • 281mm projection
  • Wall bracket
  • Automatic bath/shower diverter
  • Total height 1031 - 1101 mm
  • Stand pipe height 565 - 635 mm
  • Height up to aerator 899 – 969 mm
  • Slide-on rosettes Ø 135 mm
  • Metal shower hose 1250mm with integrated anti-twist protection
  • WRAS
  • Intrinsic protection against back flow.
