Fitting

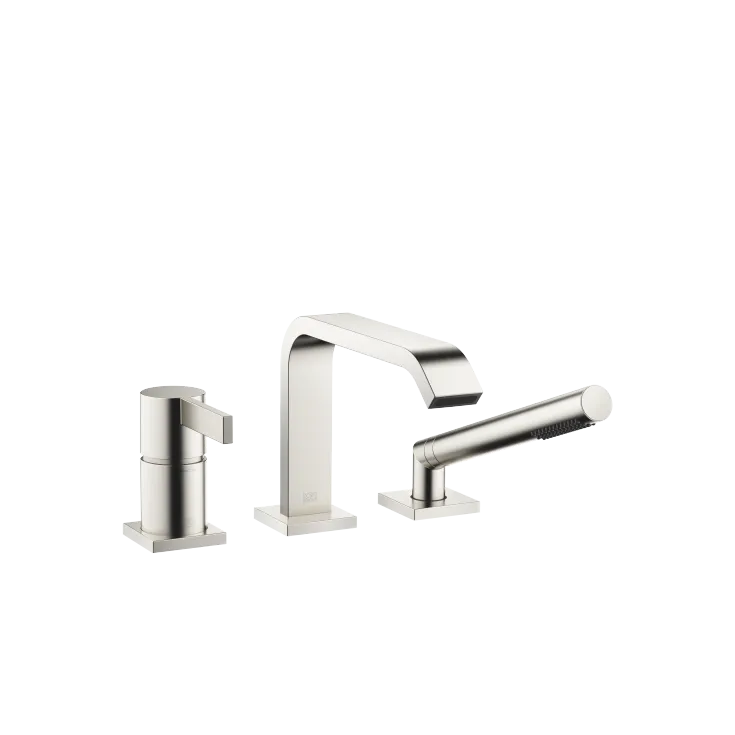

IMO Three-hole single-lever bath mixer for bath rim or tile edge installation - Brushed Platinum
Product Number | 27 412 670-06 0050 |
EAN Number | 4099477058306 |
Color: Brushed Platinum
Product Details
Application area | Bath |
Construction type | Floor mounting |
Finish type | Brushed Platinum |
Product concept | IMO |
Product type BU | Fitting |
Brand | Dornbracht |
Features
- 224mm projection
- Spout: cascade
- Max. flow 19.2 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- Automatic bath/shower diverter
- Height of mixer 110 mm
- Height up to aerator 138 mm
- Hole diameter spout 32 mm
- Single-lever mixer hole diameter 35 mm
- Hole diameter for complete hand shower set 32 mm
- Rosette for mixer 60 x 60mm
- Rosette for spout 60 x 60mm
- Rosette for complete hand shower set 60 x 60mm
- Metal shower hose 2250mm with integrated anti-twist protection
- Intrinsic protection against back flow.
