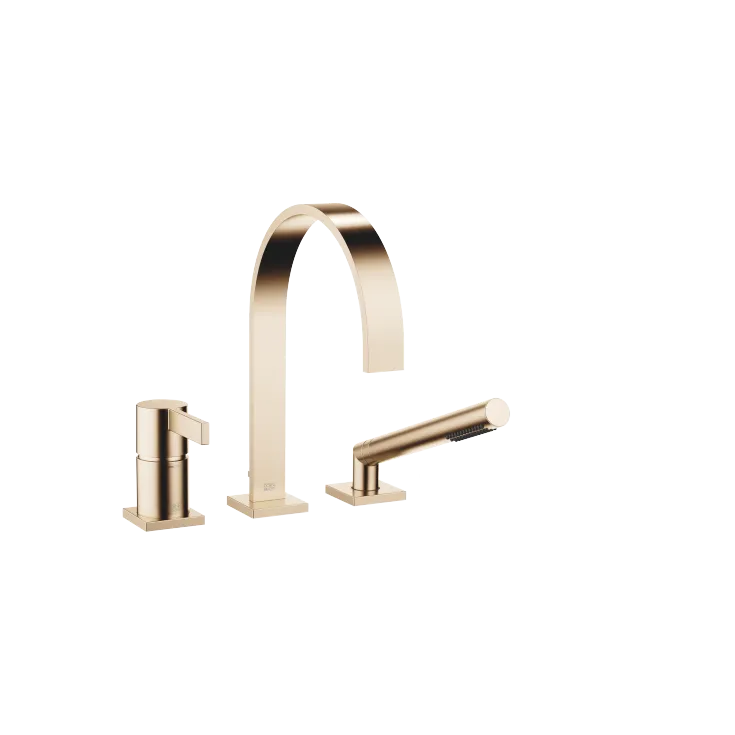

MEM Three-hole single-lever bath mixer for bath rim or tile edge installation - Brushed Champagne (22kt Gold)
Product Number | 27 412 782-46 0050 |
EAN Number | 4099477137018 |
Color: Brushed Champagne (22kt Gold)
Product Details
Application area | Bath |
Construction type | Floor mounting |
Finish type | Brushed Champagne (22kt Gold) |
Product concept | MEM |
Brand | Dornbracht |
Features
- Spout: rectangular normal flow
- Max. flow 20.4 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- 220mm projection
- Automatic bath/shower diverter
- Height of mixer 300 mm
- Height up to aerator 170 mm
- Hole diameter spout 32 mm
- Single-lever mixer hole diameter 35 mm
- Hole diameter for complete hand shower set 32 mm
- Rosette for mixer 60 x 60mm
- Rosette for spout 60 x 60mm
- Rosette for complete hand shower set 60 x 60mm
- Metal shower hose 2250mm with integrated anti-twist protection
- Intrinsic protection against back flow.
