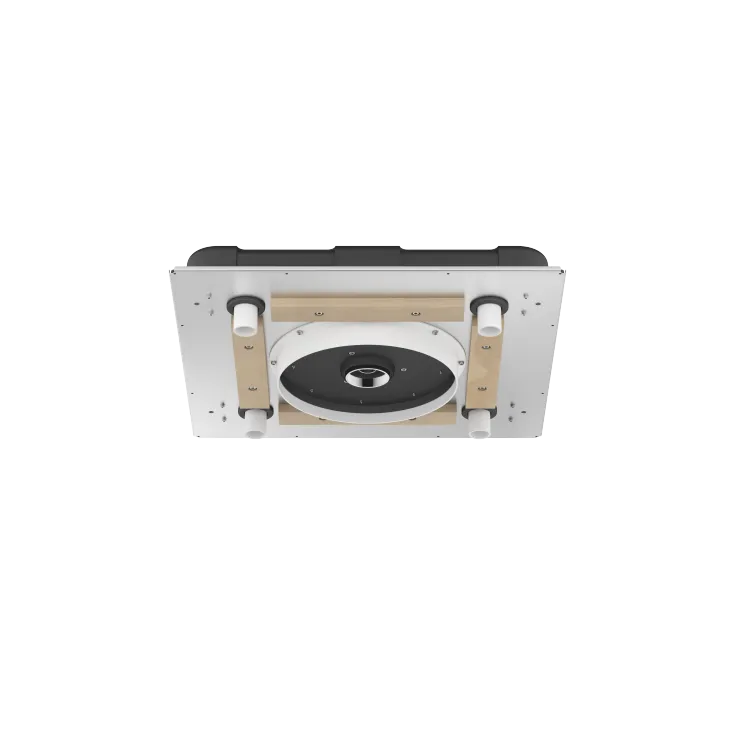

SERIES-VARIOUS Chrome : AQUAHALO Concealed ceiling installation box

SERIES-VARIOUS AQUAHALO Concealed ceiling installation box - Chrome - 35 750 970-00 0050

Product Description

Product Number	35 750 970-00 0050
EAN Number	4099477268422
Application area	Shower
Brand	Dornbracht

Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

Concealed rough parts
Rain panel with 3 different flow modes
AQUACIRCLE RAIN: Circular rain curtain, max. flow rate l/min (at 3 bar)
TEMPEST RAIN: Natural rain, max. flow rate l/min (at 3 bar)
DIAMOND RAIN: Ring of rain, max. flow rate l/min (at 3 bar)
Ceiling installation enclosure 605 x 605 x 95 mm
Weight: 10 kg
Min. recess depth 110 mm
Max. recess depth 150 mm
For simultaneous control of the jet types, we recommend the xTool thermostat module
Separate LED power supply
Input LED power supply
Input 100-240V AC 50-60Hz
Output LED power supply
350mA (CC)
Output specification LED power supply
SELV (Safety Extra Low Voltage)

Class 2
Ceiling module power supply
350mA (CC)
Supply pipe 7 m
Spot lighting
LED colour temperature approx. 3000 K
Bulbs protected against splashing water
Contains energy efficiency class bulbs
Technology: LED, not dimmable
Provided by customer: Light switch
Environment
Not suitable for outdoor use.
Not suitable for use in a steam room.
Not suitable for use in chlorinated or salty environments.
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
Pre-assembly kit for three-way diverter included
