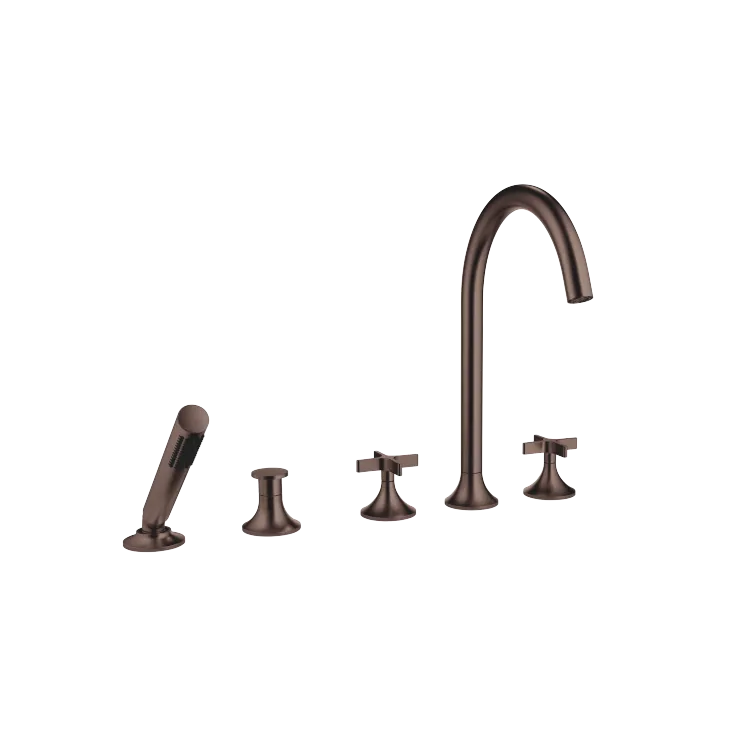

VAIA Five-hole bath mixer for deck mounting with diverter - Brushed Dark Bronze (PVD)
| Product Number | 27 522 809-43 |
| EAN Number | 4099477463933 |
Finishes
Brushed Dark Bronze (PVD)
Product Description
VAIA unites traditional elegance with modern-day clarity in our Transitional Style. The use of various finishes enables VAIA to blend into many different contemporary interiors: in both traditional and modern-minimalistic bathroom architectures as well as those combining elements of different styles.
| Product Number | 27 522 809-43 |
| EAN Number | 4099477463933 |
| Application area | Bath |
| Construction type | Floor mounting |
| Brand | Dornbracht |
Product Detail
- Spout: circular, air-enriched flow
- Max. flow 21.5 l/min at 3 bar flow pressure
- Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
- Complete hand shower set with anti-scale system
- 220mm projection
- Automatic bath/shower diverter
- Height of mixer 347 mm
- Height up to aerator 244 mm
- Hole diameter valve 32 mm
- Hole diameter spout 32 mm
- Hole diameter for complete hand shower set 32 mm
- Rosette for complete hand shower set Ø 60mm
- Rosette for spout Ø 60mm
- Rosette for deck valve Ø 60mm
- Metal shower hose 1750mm with integrated anti-twist protection
- WRAS
- Intrinsic protection against back flow.
