ENO Single-lever mixer Pull-out - Brushed Platinum - 33 840 760-06
ENO Single-lever mixer Pull-out - Brushed Platinum - 33 840 760-06
ENO Single-lever mixer Pull-out - Brushed Platinum - 33 840 760-06

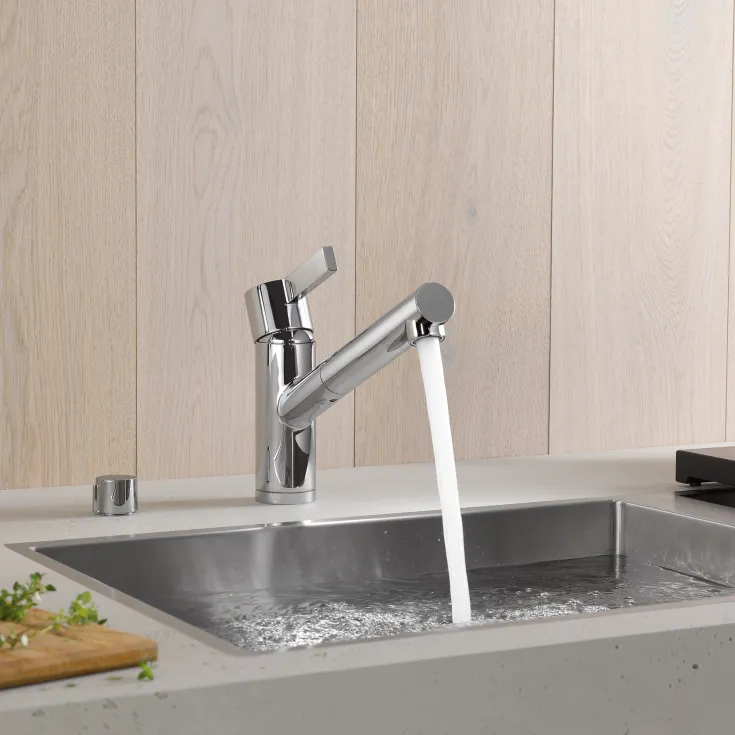

ENO Single-lever mixer Pull-out - Brushed Platinum

Product Number33 840 760-06
EAN Number4029011640834

Brushed Platinum

Product Description

Product Number33 840 760-06
EAN Number4029011640834
Application areaKitchen
Construction typeFloor mounting
Flow rate Max.8 l/min
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • 220mm projection
  • Pivotable spout 130°
  • Air-enriched flow
  • Height of mixer 167 mm
  • Height up to aerator 145 mm
  • Hole diameter 35 mm
  • Fabric braided hose 1500 mm
  • Max. flow 8 l/min at 3 bar flow pressure
  • Lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Intrinsic protection against back flow.

Downloads

Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.

Specification package

zip

Care instructions

pdf

Factsheet

pdf

Technical information

2D CAD
3D CAD
Certificates
Installation
Parts & Support
