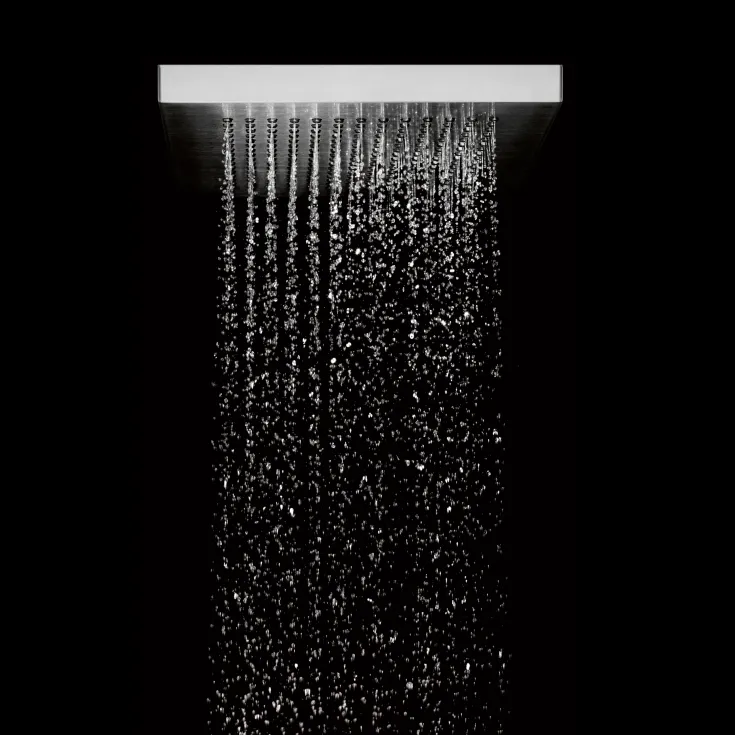

JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel - 41 507 979-85
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel - 41 507 979-85
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel - 41 507 979-85
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel - 41 507 979-85

JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Stainless Steel

Product Number41 507 979-85
EAN Number4029011560989
Finishes
Stainless Steel
Brushed Stainless Steel

Stainless Steel



Product Description

Product Number41 507 979-85
EAN Number4029011560989
Application areaShower
Construction typeCeiling mounting
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Rain shower 400 x 320mm
  • PURE RAIN, max. flow rate 44 l/min (at 3 bar)
  • 1/2" connection
  • Pre-fitted stainless steel enclosure
  • With anti-scale system
  • Technical data:
  • Minimum flow: 17 l/min
  • Flow at 3bar flow pressure in conjunction with xTOOL: 24,5l/min
  • Minimum flow pressure 2 bar
  • Max. flow pressure 4 bar
  • Weight 7kg
  • Planning tips:
  • Plumbing:
  • For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50

Downloads

Here you have the opportunity to download all relevant documents. Whether brochures, instructions or important information - everything is available for download. Further technical files can be found in the technical information section further down on the product page.

Specification package

zip

Care instructions

pdf

Factsheet

pdf

Technical information

2D CAD
3D CAD
BIM
Certificates and Sustainability
Installation
Parts & Support
