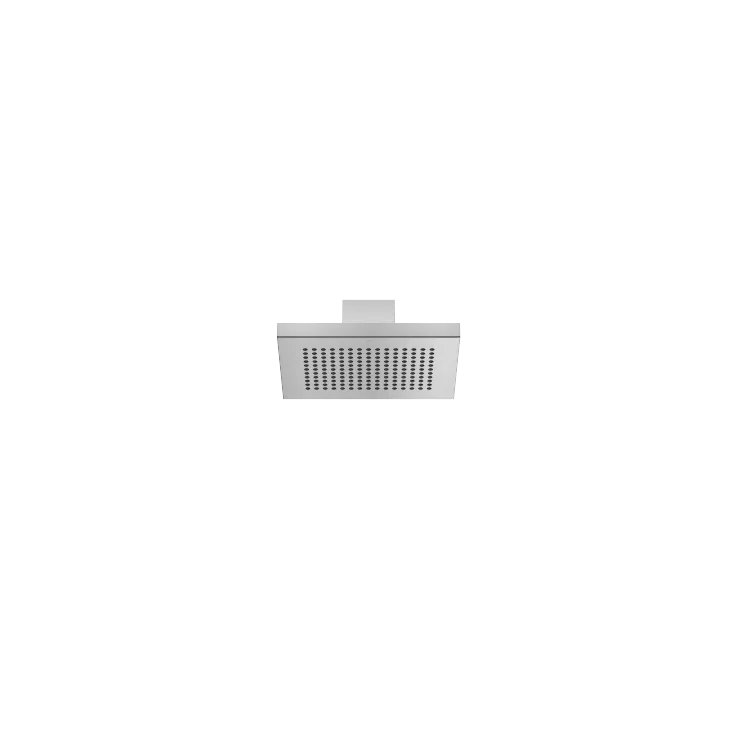

JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel - 41 507 979-86
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel - 41 507 979-86
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel - 41 507 979-86
JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel - 41 507 979-86

JUST RAIN Rain shower with ceiling fixing 400 x 320 mm - Brushed Stainless Steel

Product Number41 507 979-86
EAN Number4029011560996
Finishes
Stainless Steel
Brushed Stainless Steel

Brushed Stainless Steel



Product Description

Product Number41 507 979-86
EAN Number4029011560996
Application areaShower
Construction typeCeiling mounting
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Rain shower 400 x 320mm
  • PURE RAIN, max. flow rate 44 l/min (at 3 bar)
  • 1/2" connection
  • Pre-fitted stainless steel enclosure
  • With anti-scale system
  • Technical data:
  • Minimum flow: 17 l/min
  • Flow at 3bar flow pressure in conjunction with xTOOL: 24,5l/min
  • Minimum flow pressure 2 bar
  • Max. flow pressure 4 bar
  • Weight 7kg
  • Planning tips:
  • Plumbing:
  • For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
