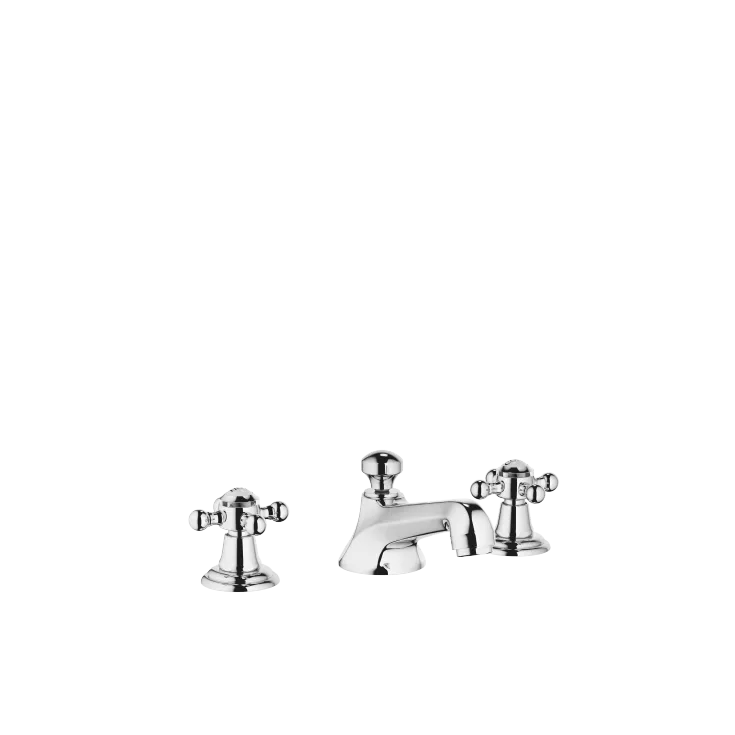

MADISON Three-hole lavatory mixer with drain - Chrome
| Product Number | 20 700 360-00 0010 |
| EAN Number | 4029011188022 |
Chrome
Product Description
Playing with history. MADISON takes up the turn of the century approach to the world of style. The fascination comes from its elegant form and the value of its materials. Cross handles with white porcelain inserts and a hexagonal spout with cut facets are reminiscent of the classical model.
| Product Number | 20 700 360-00 0010 |
| EAN Number | 4029011188022 |
| Application area | Lavatory |
| Construction type | Deck-mounted |
| Flow rate Max. | 1.2 gpm |
| Brand | Dornbracht |
Product Detail
- 5-3/8" Projection
- US drain with overflow
- Rigid spout
- Round aerated stream
- Total height 2-7/8"
- Height to aerator/spout outlet 1-5/8"
- Valve hole diameter 1-1/4"
- Spout hole diameter 1-3/8"
- Without flange
- 2x 1/2" x 1/2" flex lines
- Water flow rate limited to max. 1.2 gpm
- Lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- Suitable only for basins with overflow.
Customisation Options
Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
