Single Hole Lavatory Mixer With Drain

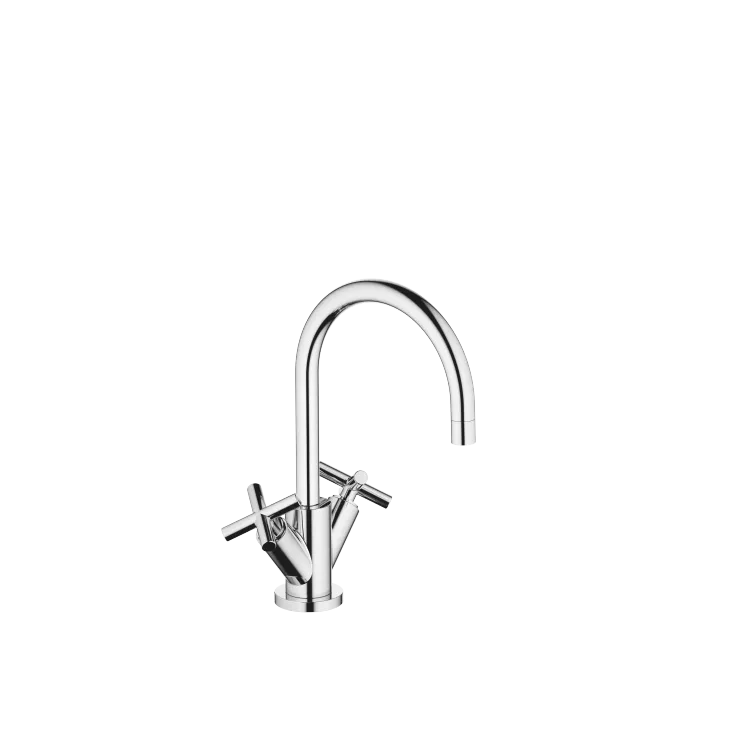

TARA Single-hole lavatory mixer with drain - Chrome - 22 513 892-00 0010

TARA Single-hole lavatory mixer with drain - Chrome

Product Number22 513 892-00 0010
EAN Number4029011523281
Finishes
Chrome
Brushed Platinum
Platinum
Dark Chrome
Brushed Durabrass (23kt Gold)
Matte Black
Brushed Dark Brass
Brushed Bronze
Brushed Champagne (22kt Gold)
Champagne (22kt Gold)
Brushed Chrome
Brushed Dark Platinum

Chrome

Product Description

Product Number22 513 892-00 0010
EAN Number4029011523281
Application areaLavatory
Construction typeDeck-mounted
Flow rate Max.1.2 gpm
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • 6-1/2" Projection
  • US drain with overflow
  • Swiveling spout 360°
  • Round aerated stream
  • Total height 11-5/8"
  • Height to aerator/spout outlet 6-3/4"
  • 1-3/8" hole diameter
  • Flange diameter 2-3/8"
  • 2 x pressure hose with 3/8” compression fitting
  • Water flow rate limited to max. 1.2 gpm
  • Lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • (ADA)

Customisation Options

Dornbracht provides fittings and accessories that are perfectly tailored to individual requirements. The design can be personalised in many ways, from technical adjustments, to exclusive surface finish variants. Adaptations to dimensions such as the length and projection of the fittings, and modifications to functions such as the flow rate or the product marking, are all part of the service. Both the dimensions and functions of these products can be readily adapted.
