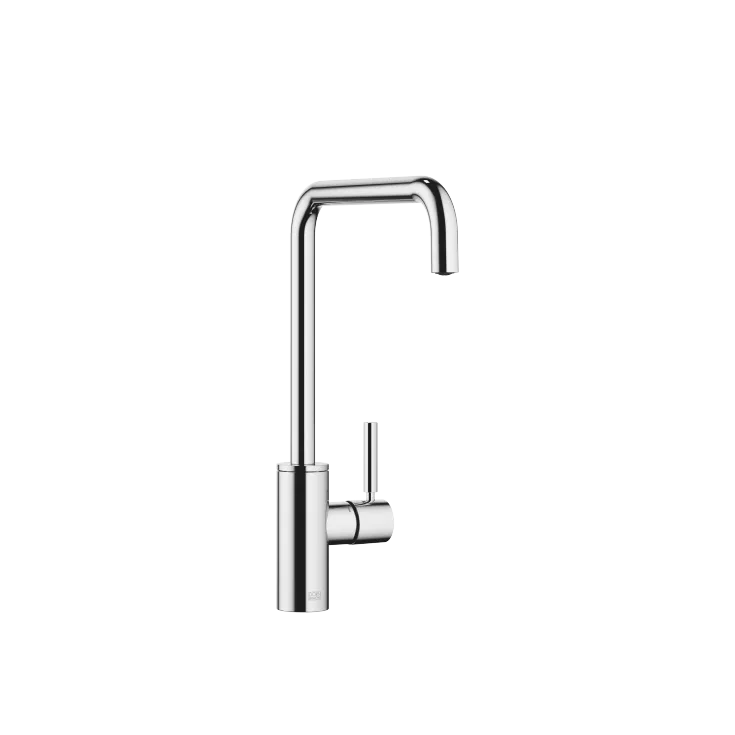

META SQUARE Single-lever mixer - Chrome - 33 815 861-00 0010

Product Details

Application areaKitchen
Construction typeFloor mounting
Finish typeChrome
Product conceptMETA SQUARE
Product type BUFitting
Flow rate Max.5.7 l/min


  • 235mm projection
  • Pivotable spout 360°
  • Optional swivel limiter available with swivel limiter set 12 820 970 90
  • Air-enriched flow
  • Height of mixer 357 mm
  • Height up to aerator 282 mm
  • Hole diameter 35 mm
  • 2 x pressure hose with 3/8" cap nut
  • Max. flow 5.7 l/min at 3 bar flow pressure
  • Lead-free
  • This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
  • Not possible in combination with rinsing spray.
