Serenity Sky Installation Rough With Light

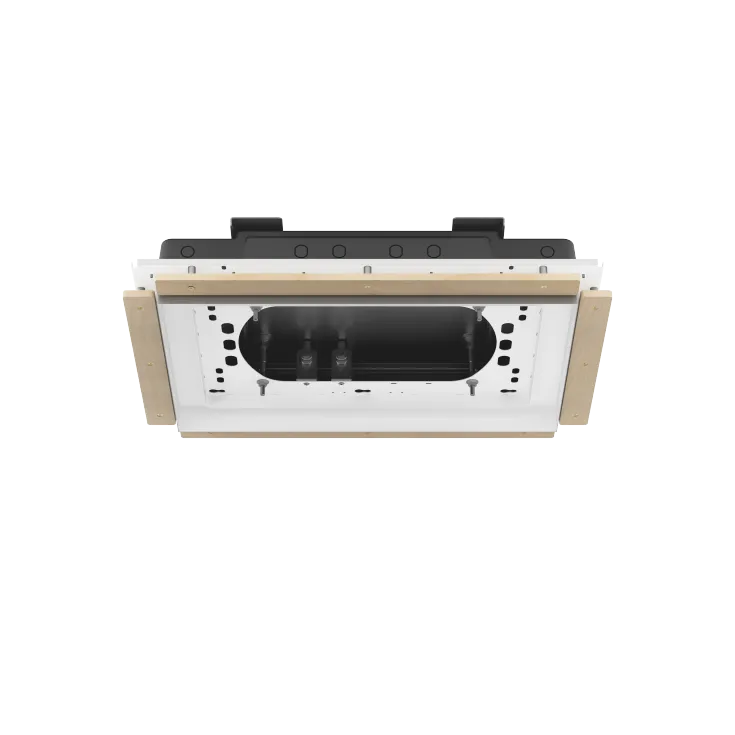

SERENITY SKY Installation rough with light - - 35 771 970-90 0010

SERENITY SKY Installation rough with light -

Product Number35 771 970-90 0010
EAN Number4099477268323

Product Description

Product Number35 771 970-90 0010
EAN Number4099477268323
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Rough parts
  • Flush-mounted reflection box 26-1/8" x 19" RAL 9003 signal white
  • 2x female thread 1/2" connections
  • Min. rough in depth 5-7/8"
  • Max. rough in depth 23-1/4"
  • Weight 33 lbs
  • Separate LED Power supply
  • Input LED Power supply
  • Electrical connection: 100-240 V AC, 50-60 Hz, 20 watts
  • Output LED Power supply
  • 24V DC (CV)
  • Output Specification LED Power supply
  • SELV (Safety Extra Low Voltage)
  • Class 2
  • Ceiling module power supply
  • 24V DC (CV)
  • Connecting cable 27-1/2"
  • Control
  • ZigBee Light Link RGBW Controller
  • To be provided by the customer: Zigbee Gateway
  • Environment
  • Not suitable for outdoor use.
  • Not suitable for use in a steam room.
  • Not suitable for use in chlorinated or salty environments.
  • Observe the regulations concerning protected zones specified in DIN VDE 0100, Part 701 (IEC 60364-7-701).
  • Dornbracht recommends consulting a systems integrator.
  • Pre-assembly kit for three-way diverter included
