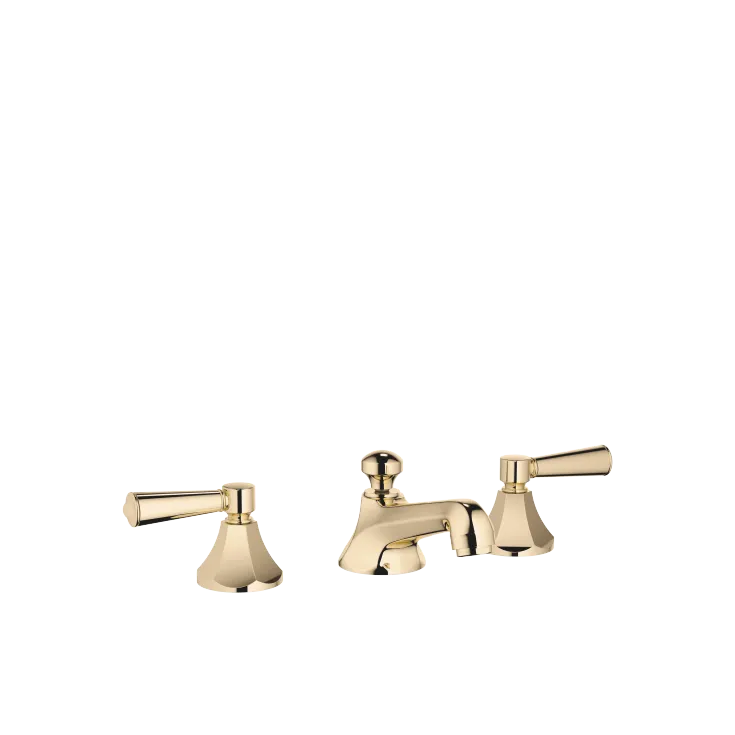

MADISON Durabrass (23kt Gold) : Three-hole lavatory mixer with drain

MADISON Three-hole lavatory mixer with drain - Durabrass (23kt Gold) - Set containing 3 articles

Product Description

Playing with history. MADISON takes up the turn of the century approach to the world of style. The fascination comes from its elegant form and the value of its materials. Cross handles with white porcelain inserts and a hexagonal spout with cut facets are reminiscent of the classical model.

Product Number	Set containing 3 articles
Application area	Lavatory
Construction type	Deck-mounted
Flow rate Max.	1.2 gpm
Brand	Dornbracht

Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

5-3/8" Projection
US drain with overflow
Rigid spout
Round aerated stream
Total height 2-7/8"
Height to aerator/spout outlet 1-5/8"
Valve hole diameter 1-1/4"
Spout hole diameter 1-3/8"

Without flange
2x 1/2" x 1/2" flex lines
Water flow rate limited to max. 1.2 gpm
Lead-free
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
NOTE: For white lever inserts please order 2x 11 170 370-12
(ADA)
Suitable only for basins with overflow.
