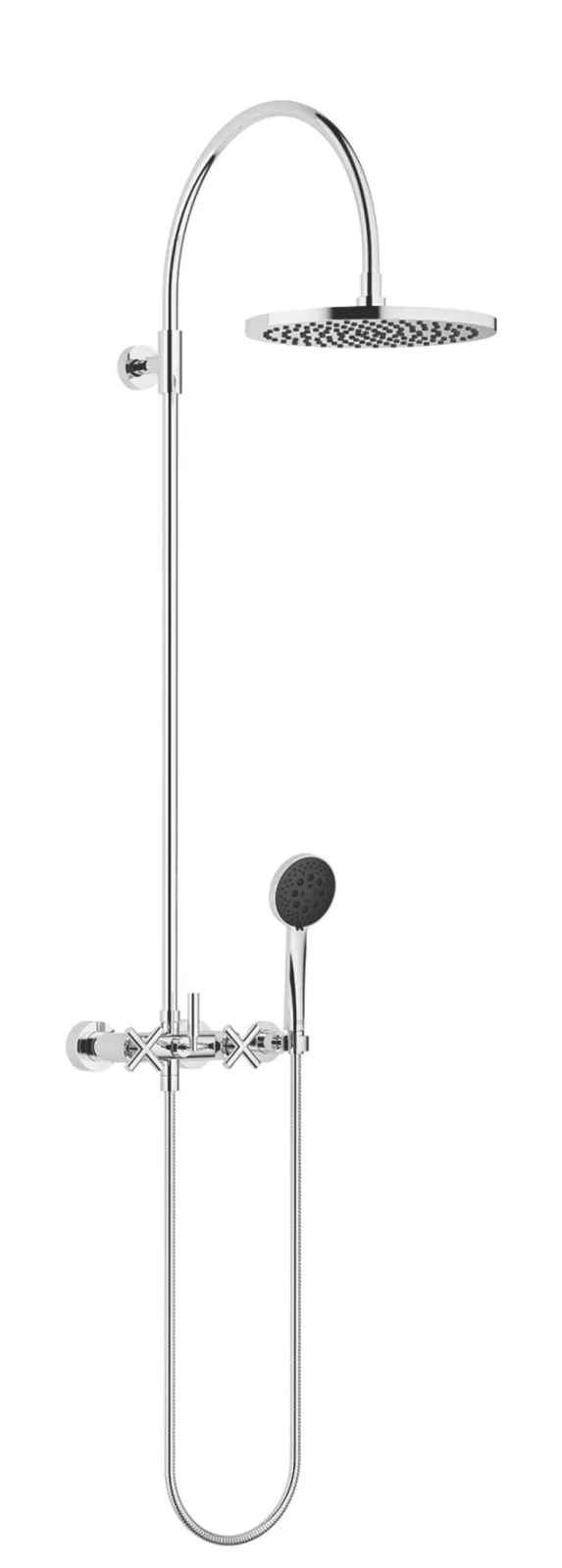

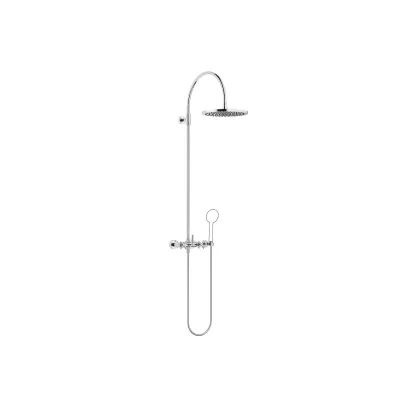

TARA Shower pipe with shower mixer 300 mm - Chrome

Product NumberSet containing 2 articles

Brushed Platinum
Dark Chrome
Brushed Durabrass (23kt Gold)
Matte Black
Brushed Bronze
Brushed Champagne (22kt Gold)
Champagne (22kt Gold)
Brushed Chrome
Brushed Dark Platinum


Product Description

Product Numberst0503091892-00
Application areaShower
Series correlationTARA

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Shower with fixed riser projection 420mm
  • Rain shower: PURE RAIN, max. flow rate 6.8 l/min (at 3 bar)
  • Function from: 6.5 l/min
  • Rain shower Ø 300 mm
  • Rain shower with anti-scale system
  • Hand shower: COMPACT RAIN, max. flow rate 6.8 l/min (at 3 bar)
  • Spray head Ø 100mm
  • Rotary diverter for fixed-riser shower/hand shower
  • Height of fittings up to rain shower (bottom edge) 850mm
  • Height of fittings up to top edge of elbow 1167mm
  • Rosette for shower holder Ø 55mm
  • Rosette for wall mounting Ø 57mm
  • Rosette for shower mixer Ø 65mm
  • Gauge 150 mm - 13 mm
  • 1500 mm metal shower hose
  • 1/2" connection
  • Pipe diameter 20 mm
  • Intrinsic protection against back flow.
