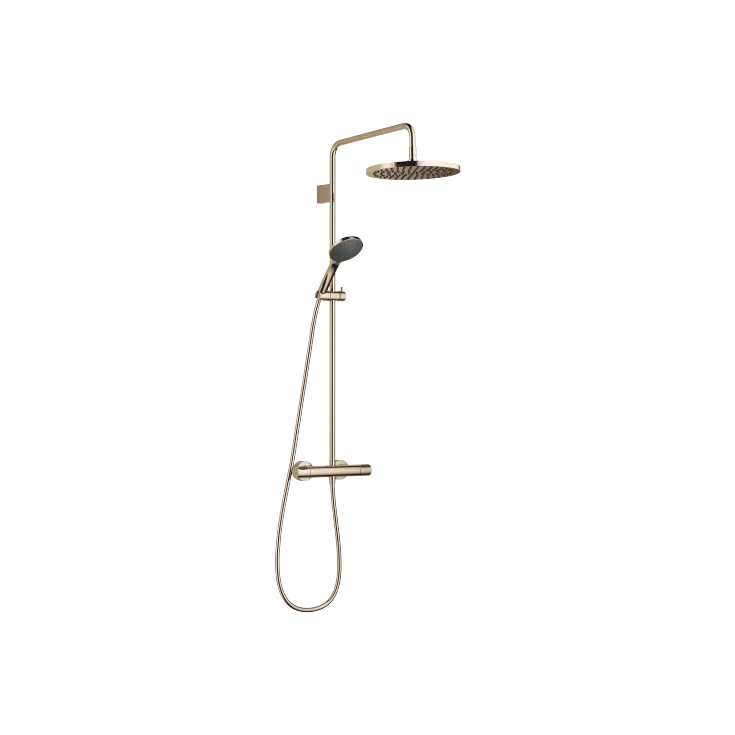

Exposed Shower Set With Shower Thermostat With Hand Shower Set
Exposed Shower Set with shower thermostat with hand shower set - Light gold - 34 469 979-26 0010

Exposed Shower Set with shower thermostat with hand shower set - Light gold

Product Number34 469 979-26 0010
Finishes

Light gold

Product Description

Product Number34 469 979-26 0010
Flow rate Max.3.7 gpm
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • Rain shower:
  • Rain shower diameter 11-3/4"
  • Material rain shower: plastic
  • PURE RAIN, flow rate max. 1.7 gpm (at 3 bar)
  • Function from: 1.7 gpm
  • Rain shower with descaling system
  • Hand shower:
  • Ø 4-3/4"
  • COMPACT RAIN, flow rate max. 3.7 gpm (at 3 bar)
  • Hand shower with descaling system
  • Internal back flow preventer
  • Control element:
  • Diverter with integrated volume control
  • 68-7/8" plastic shower hose with integrated anti-twist protection
  • Slide bar
  • Technical data:
  • Projection 17-7/8"
  • Height from center of faucet to bottom of rainhead 39-3/4"
  • Height from center of faucet to top of shower arm 45-1/4"
  • Flanges Ø 2-3/4"
  • Center to center 5-7/8" ± 1/2"
  • Pipe diameter 3/4"
  • 1/2" connection
