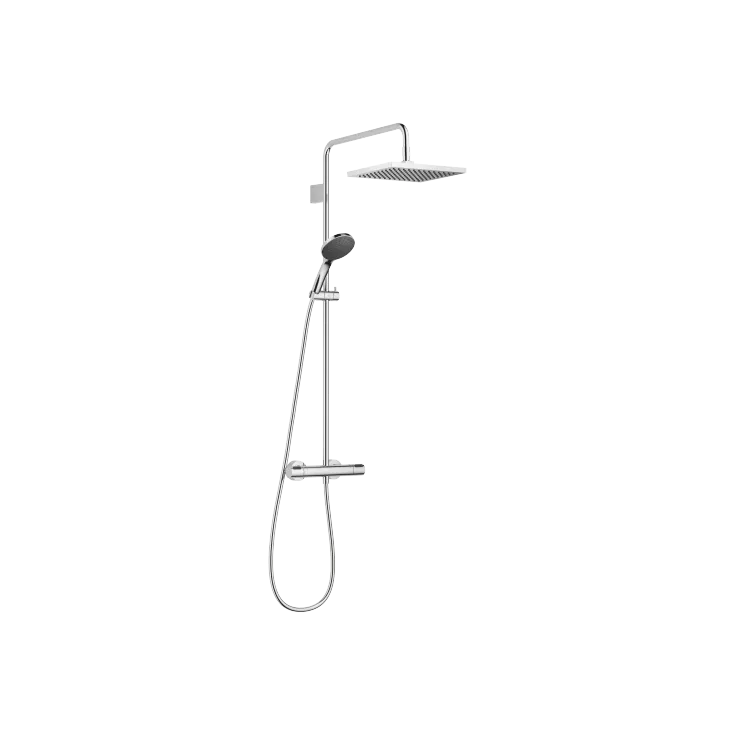

Exposed Shower Set with shower thermostat with hand shower set 11-3/4" x 9-1/2" - Chrome - 34 469 980-00 0010

Exposed Shower Set with shower thermostat with hand shower set 11-3/4" x 9-1/2" - Chrome

Product Number34 469 980-00 0010
EAN Number4099477512129

Finishes
Chrome
Dark Chrome
Light Gold (PVD)
Brushed Light Gold (PVD)
Matte Black
Brushed Bronze (PVD)
brushed chrome
Brushed Dark Platinum

Chrome




Product Description

Product Number34 469 980-00 0010
EAN Number4099477512129
Flow rate Max.1.8 gpm
BrandDornbracht

Individual colours:  For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless

Product Detail

  • 11-3/4" x 9-1/2" Rain showerhead
  • Material rain shower: plastic
  • PURE RAIN, flow rate max. 1.8 gpm (at 3 bar)
  • Function from: 1.6 gpm
  • Rain shower with descaling system
  • Hand shower:
  • Ø 4-3/4"
  • COMPACT RAIN, flow rate max. gpm (at 3 bar)
  • Hand shower with descaling system
  • Internal back flow preventer
  • Control element:
  • Diverter with integrated volume control
  • With FlowReduce function
  • Flanges Ø 2-3/4"
  • 68-7/8" plastic shower hose with integrated anti-twist protection
  • Slide bar
  • Technical data:
  • Projection 17-7/8"
  • Height from center of faucet to bottom of rainhead 38-1/4"
  • Height from center of faucet to top of shower arm 45-1/8"
  • Center to center 5-7/8" ± 1/2"
  • Pipe diameter 3/4"
  • 1/2" connection
  • Available from Q2 2026
