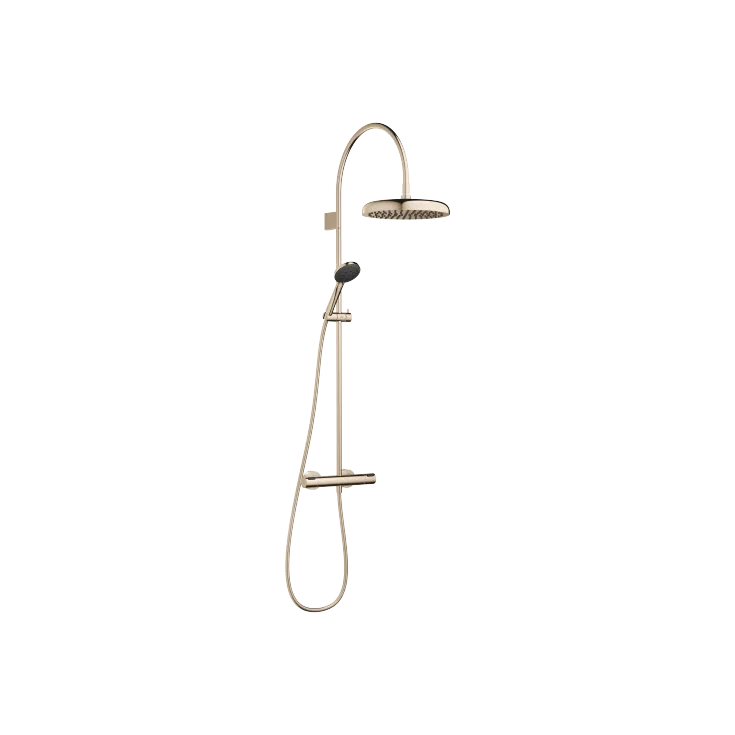

COYA Champagne (22kt Gold) : Showerpipe application with shower thermostat 11-3/4"

COYA Showerpipe application with shower thermostat 11-3/4" - Champagne (22kt Gold) - Set containing 2 articles

Product Description

Product Number	Set containing 2 articles
Brand	Dornbracht

Individual colours: For many series, we put the entire range of RAL colours into effect as painted surfaces - from a minimum quantity of one.

Expanding the variety of finishes: With electroplating technology, PVD, powder-coating or wet painting, the possibilities are almost limitless.

Product Detail

Rain shower diameter 11-3/4"
Rain shower material: metal
Rain shower: PURE RAIN, flow rate max. gpm (at 3 bar)
Function from: 1.6 gpm
Rain shower with descaling system
Hand shower:
Ø 3-7/8"
3-way or 5-way adjustable: COMPACT RAIN, COMPACT SOFT FLOW, COMPACT AQUAPRESSURE FLOW, flow rate max. 1.8 gpm (at 3 bar)
1/2" connection
Internal back flow preventer
Hand shower with descaling system
Control element:

Diverter with integrated volume control
Flanges Ø 2-3/4"
Metal shower hose 68-7/8" with anti-twist device
Slide bar
Technical data:
16-1/2" Projection
Height from center of faucet to bottom of rainhead 36-7/8"
Height from center of faucet to top of shower arm 50-3/8"
Pipe diameter 7/8"
Center to center 5-7/8" ± 1/2"
Notes:
